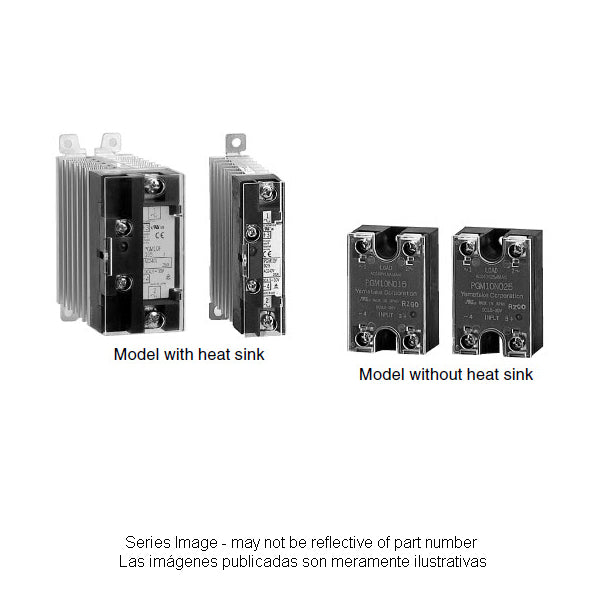

PGM10N015 Heat Power Regulator Solid-State Relay

Actuator - Solid-State Relay- Heat Power Regulator Solid-State Relays - Without heat sink - Max. load current 15 A, input voltage range 3.5 to 30 V, input current 10 mA max., pick-up voltage 3.5 Vdc max., drop-out voltage 1 Vdc min., load voltage range 35 to 264 Vac, maximum surge current 150 A (1 cycle), Turn-on time, 1/2 cycle + 1 ms max., turn-off time 1/2 cycle + 1 ms max, output on voltage drop 1.5 V max., leakage current 12 mA max., dielectric strength 3000 Vac, Operating ambient temperature -20 to 80 °C, UL, cUL certified. Weight 390 g.
