Electromagnetic Flowmeters

Azbil’s high-efficiency electromagnetic flowmeters can be applied to a wide range of applications. Based on technologies that were fostered by our long-time amassed experience and performance records, these industry-proven flowmeters come in a large array of sizes and liners.

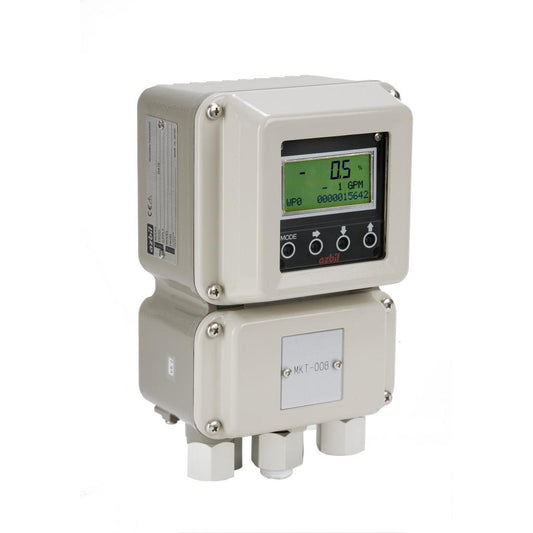

Azbil’s MagneW™ 3000 PLUS⁺ Smart 4-wire high-performance integral or remote-mount electromagnetic flowmeter converter, when paired with the MagneW™ 3000 PLUS⁺ detector (*sold separately) provides high accuracy (±0.5% of rate) flow measurement in process fluids. 100-120V AC, 200-240V AC power supply (contact Azbil North America for DC power supply options). Analog 4-20 mA DC and digital HART or DE communication output. Ambient operating temperatures range from -13 °F (-25 °C) to 140 °F (60 °C). Large back-lit LCD displays field-selectable instantaneous percent, actual, or totalized flow rate. Contact Inputs – 1 input and 1 output standard, contact Azbil North America for additional options. Empty pipe detection. Lightning / surge-protected. Approved by FM/CSA Class I Division 2 Groups A, B, C & D; Class II Division II Groups F & G; Class III Division 2

* A complete measurement loop consists of a Model: MGG14C Converter and MGG Detector. In the case of integral meters, the converter and detector will be shipped as an assembly but each component must be specified with a complete model number and ordered as a separate line item. In the case of remote-mount meters, a Model: MGA12 cable must also be specified, but items will be shipped separately.

MagneW™ is a trademark of Azbil Corporation
