Actuator

The Azbil line of pneumatic actuators consists of piston cylinders (single and double action) and the more popular diaphragm motors (single action). Piston cylinders are used for high-pressure valves and large-caliber valves requiring significant output and long strokes.

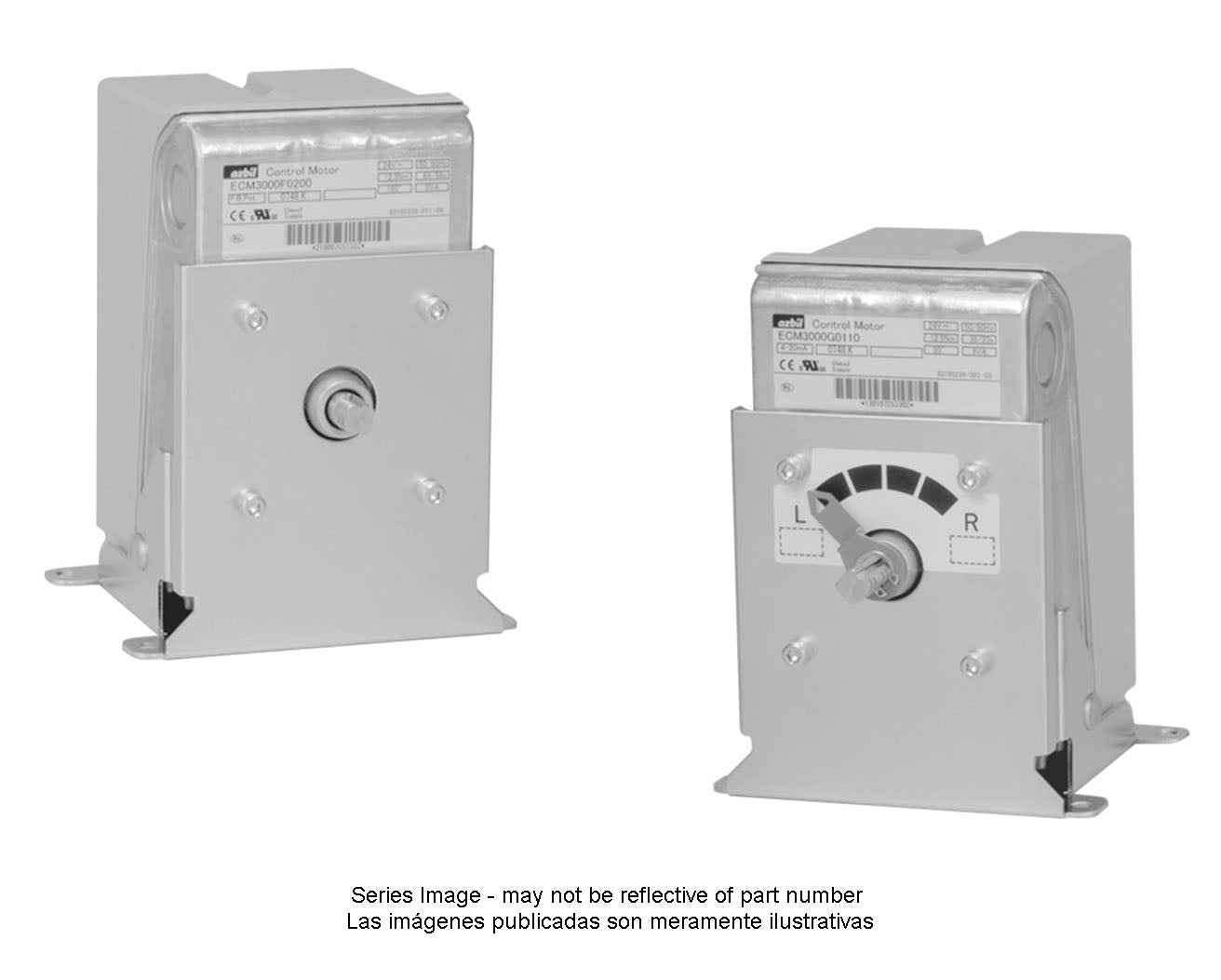

Azbil Model ECM3000 series of control motors are designed for various industrial equipment applications. Two models are available: 90° angular stroke for applications such as burner controls and 160 ° angular stroke for applications such as valve controls of hot and cold water or steam.

The motors have a robust aluminum die-cast body. Splash-proof struct or IP54 or equivalent, superior to environment resistance Three kinds of control signal input types are available: relay contact, 4 to 20 mAdc, and potentiometer depending on the model. Three kinds of power supply voltage types are amiable: 24 Vac, 100 Vac, and 200 Vac. depending on the model. Additionally, a power supply unit applicable to a voltage range of 85 to 264 Vac is also available for the 4 to 20 mAdc input type. The Model EMC3000 contains a standard bracket accessory for retrofitting Azbil’s older motors. Input is selectable – 3 inputs types are available – relay, 4 to 20 mAdc, and potentiometer (according to the model No.). Long-life parts are used for the internal potentiometers and bearings of the motor. The 90° angular stroke motor type has a pointer to indicate the position of the rotating shaft and a rotating direction label. The motors have a pointer to indicate the position of the rotating shaft and a rotating direction label. Models with two auxiliary switches and open/close override functions are available. 24Vac models are CE-marked and cUL certified.
