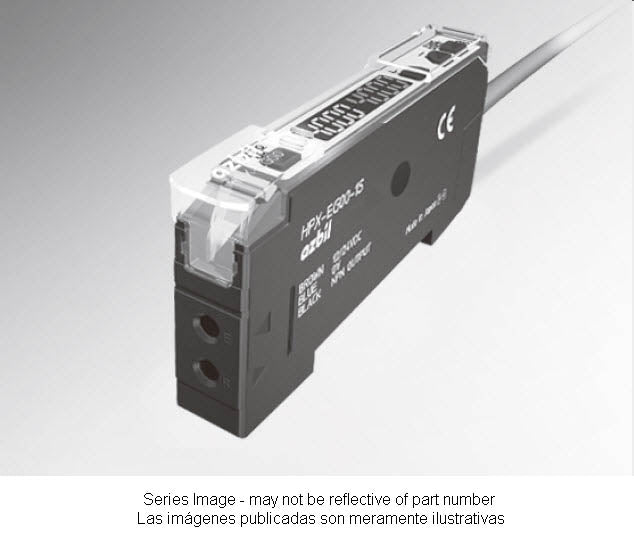

HPX-EG50-2S Digital Fiber-Optic Switch

Photoelectric Sensor- Digital Fiber-Optic Amplifier - Long Distance Model - High Sensitivity - output PNP, cable lead-out, 1 m cable, external input on (short-circuit current 0.1 mA): 7.2 - 26.4 Vdc, external input off: open or connection to 0 to 1 Vdc, light emitter red four-element LED (660nm), residual voltage 3 V max., response time 250 µs (Ft)/ 500 µs (SF)/ 1 ms (nL)/5ms(HP), CE-marked, UL certified
